Official Pics and Specs for the Streamlight TLR-1 HL and TLR-2 HL from the 2013 SHOT Show

Here are the official tech specs and images for the new 630 lumen Streamlight TLR-1 HL and TLR-2 HL weapons lights at the 2013 SHOT Show. The TLR-1 HL and the TLR-2 HL have an MSRP of $234.00 and $523.00.

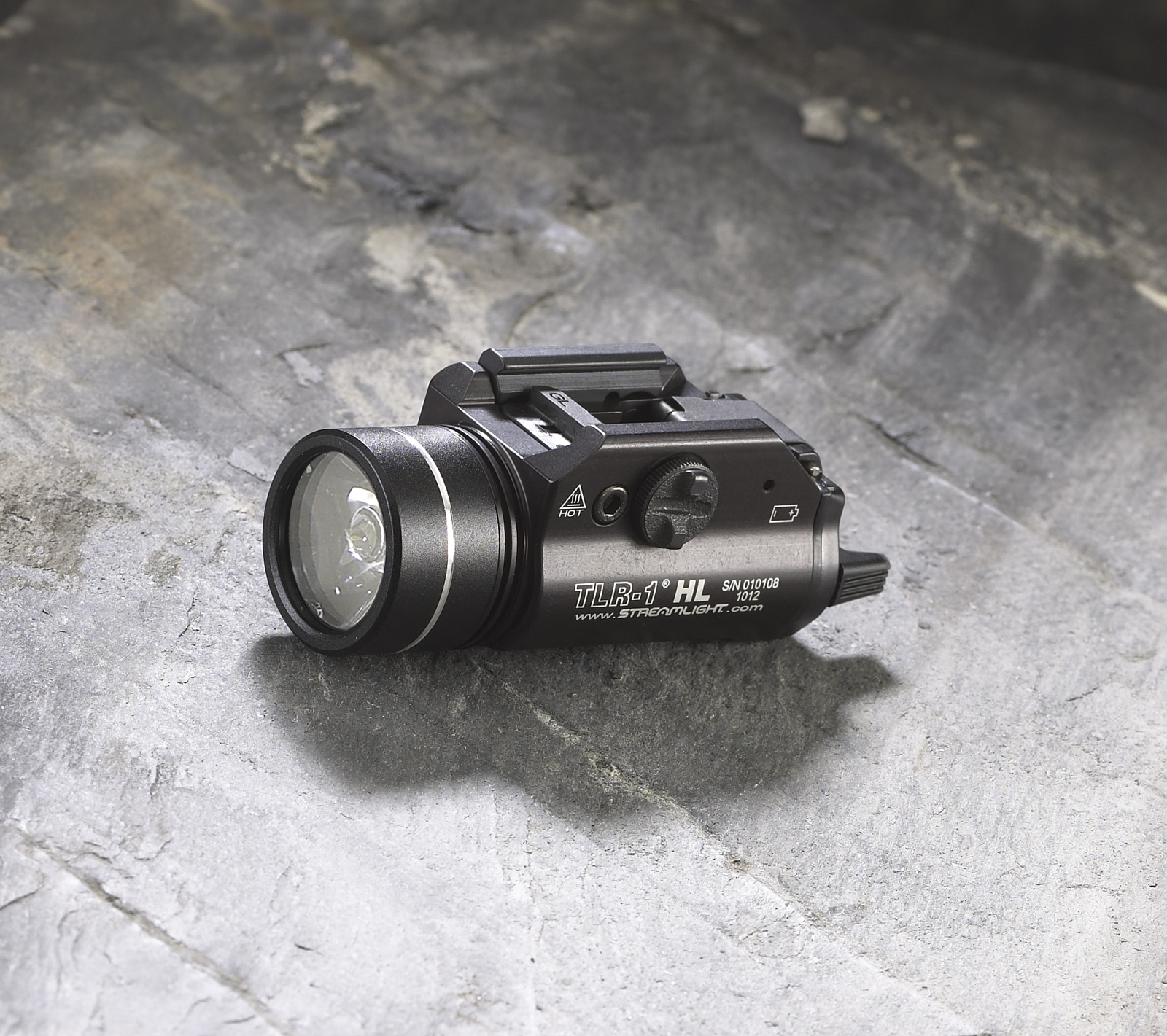

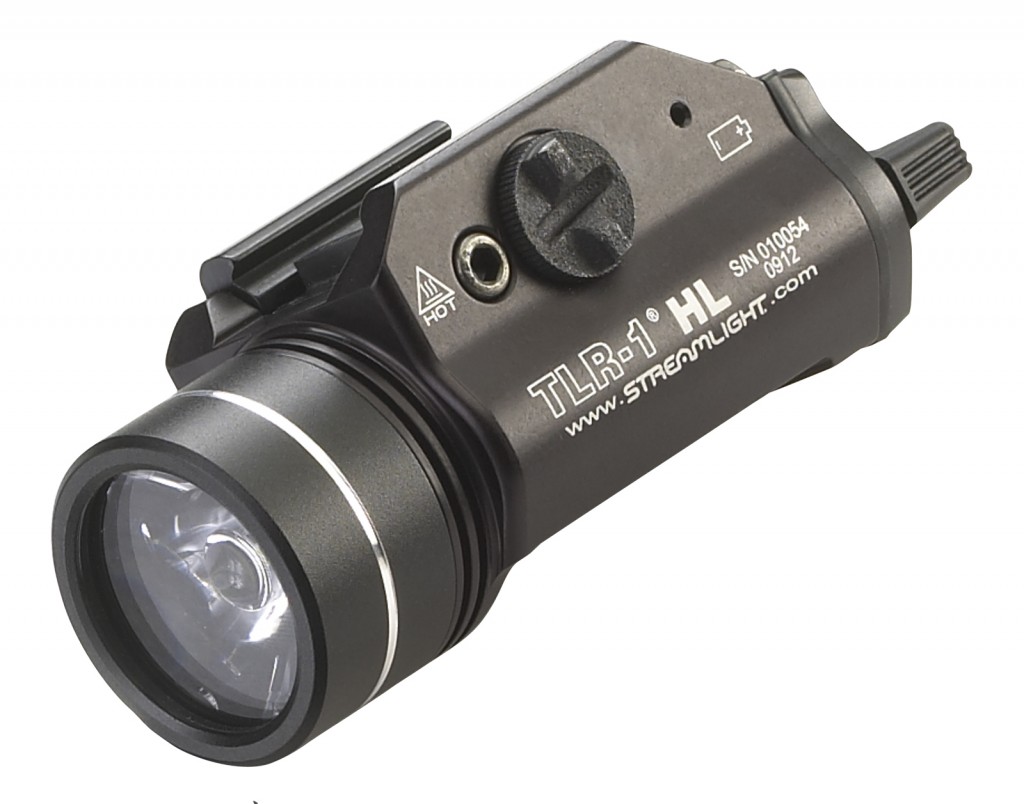

Streamlight 69260 TLR-1 HL

Streamlight 69260 TLR-1 HL

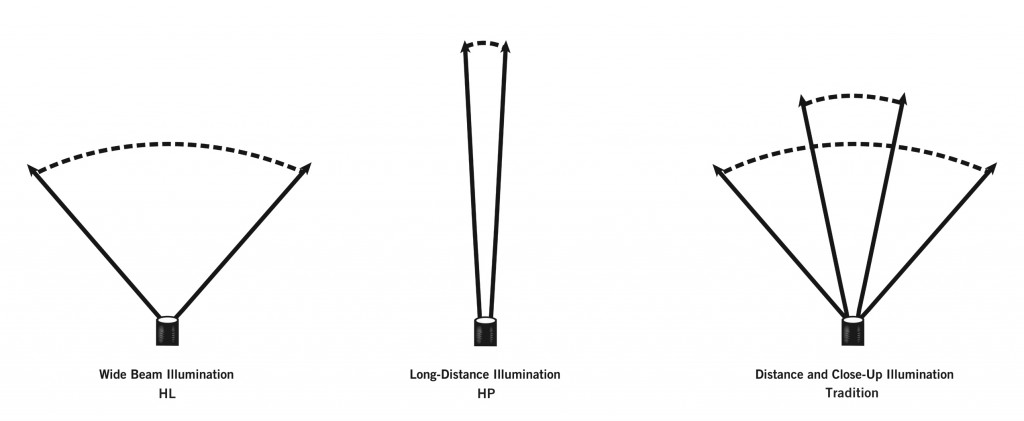

Beam Chart

Streamlight TLR-1 HL

  • C4 LED delivers 12,000 candela peak beam intensity; 630 lumens
  • TIR optic produces a concentrated beam with optimum peripheral illumination
  • Runs 1.25 hours. Solid-state current regulation for consistent illumination level
  • Ambidextrous momentary/steady On-Off switch. Double tap momentary
  • paddle to activate strobe
  • Securely fits a broad range of weapons; Includes keys for Glock-style, Picatinny,
  • Beretta 90two, S&W 99 and S&W TSW
  • Mounts directly to handguns with Glock-style rails and to all MIL-STD-1913
  • (Picatinny) rails
  • One handed snap-on and tighten interface keeps hands away from muzzle when
  • attaching/detaching
  • 6000 series machined aircraft aluminum with anodized finish with high
  • temperature, shock-mounted glass lens
  • Tethered battery door and latch mechanism prevents battery door loss while
  • providing easy battery replacement
  • Operating temperature: -40°F to +120°F.
  • IPX7 waterproof to 1 meter for 30 minutes
  • User programmable strobe can enabled/disabled
  • Powered by two 3V CR123A lithium batteries (included)
  • Serialized for positive identification
  • 3.39” (8.61 cm); 4.18 oz (118.6 grams)
  • Limited lifetime warranty
  • Visit www.streamlight.com for full warranty information
  • 69260 – TLR-1 HL with lithium batteries
  • Optional remote switch accessories available

Streamlight TLR-2 HL

  • C4 LED delivers 12,000 candela peak beam intensity; 630 lumens
  • TIR optic produces a concentrated beam with optimum peripheral illumination
  • Runs 1.25 hours. Solid-state current regulation for consistent illumination level
  • Laser only function runs 45 hours
  • Ambidextrous momentary/steady On-Off switch. Double tap momentary
  • paddle to activate strobe
  • Securely fits a broad range of weapons; Includes keys for Glock-style,
  • Picatinny, Beretta 90two, S&W 99 and S&W TSW
  • Mounts directly to handguns with Glock-style rails and to all MIL-STD-1913
  • (Picatinny) rails
  • One handed snap-on and tighten interface keeps hands away from muzzle
  • when attaching/detaching
  • 6000 series machined aircraft aluminum with anodized finish with high
  • temperature, shock-mounted glass lens
  • Windage and Elevation adjustment screws mounted in brass bushings
  • for long life and dependable zero retention; Highly accurate sight repeatability
  • when remounting.
  • Operating temperature: -40°F to +120°F. IPX4 water resistant
  • User programmable strobe can enabled/disabled
  • Powered by two 3V CR123A lithium batteries (included)
  • Tethered battery door and latch mechanism prevents battery door loss while
  • providing easy battery replacement
  • Serialized for positive identification
  • 3.39” (8.61 cm); 4.78 oz (135.5 grams)
  • Limited lifetime warranty
  • Visit www.streamlight.com for full warranty information
  • 69261 – TLR-2 HL with lithium batteries
  • Optional remote switch accessories available
